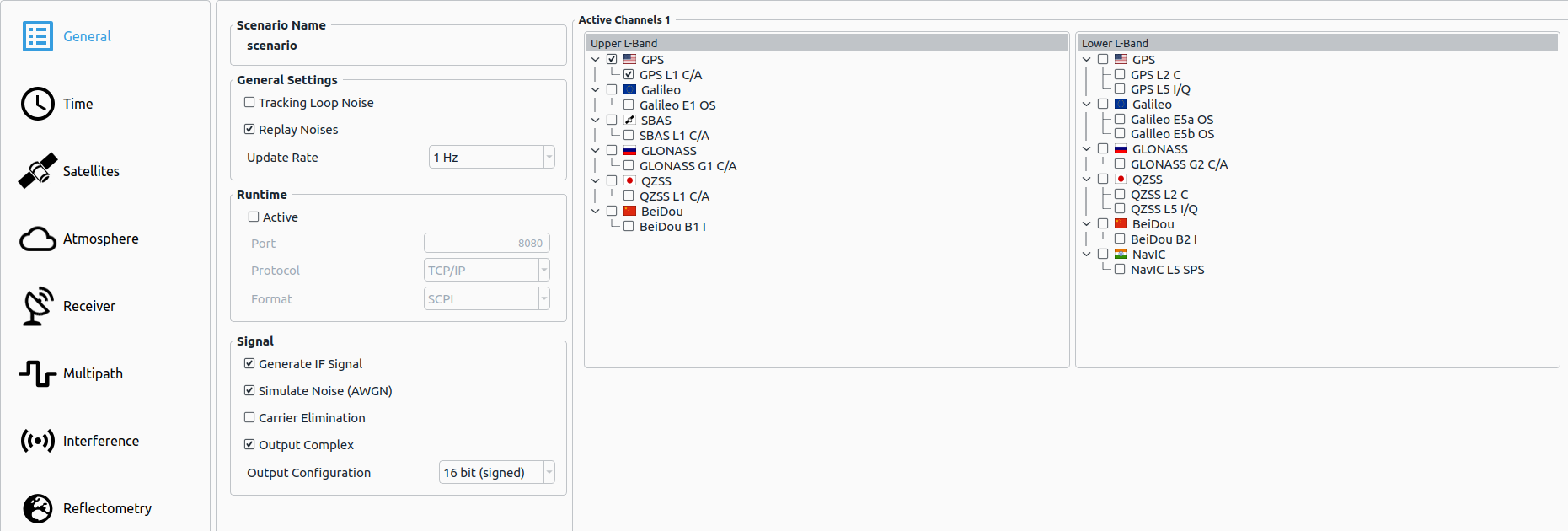

General Settings

All settings concerning the whole simulation are visible in this section.

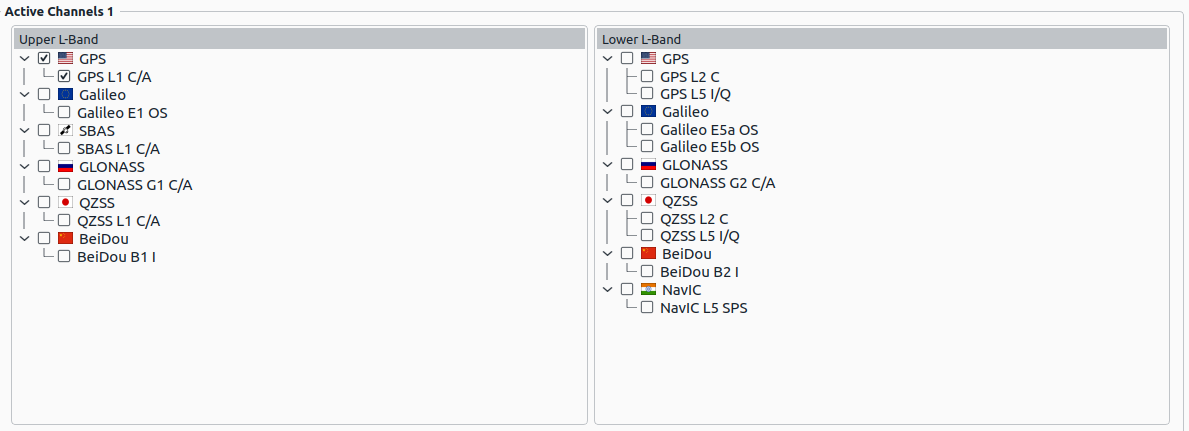

Simulated Channels

All satellite channels selected here are part of the final simulation. Based on the chosen band (L1 and L2) several IF files will be generated.

Note

If new channels are selected, but are not part of the front-end settings in the Receiver Settings, then the corresponding front-end settings have to be configured. Otherwise the scenario is invalid.

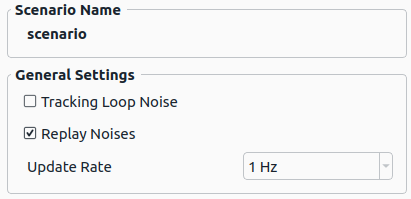

General settings

Parameter	Description
Scenario Name	The name of the current project. Note, that this is the filename of the scenario file (*.json) loaded.
Tracking Loop Noise	If enabled, simulated tracking loop noises based on signal to noise ratio will be applied to observations (not affecting IF signal)
Replay Noise	If enabeld, seeds are used for random noise generations; if disabled, new seeds are generated for noise generators.
Update Rate	[Hz] Update Rate of models in the simulation, i.e. receiver path computation and satellite orbit computation.

Run-time Settings

Parameter	Description
Active	If enabled, XPLORA either creates a TCP/IP or an UDP server for run-time settings application (see Run-time API).
Port	Port number of TCP/IP or UDP server.
Protocol	Protocol used for run-time interface (TCP/IP or UDP).
Format	Choose the format of messages (SCPI or Datagram, see Run-time API).

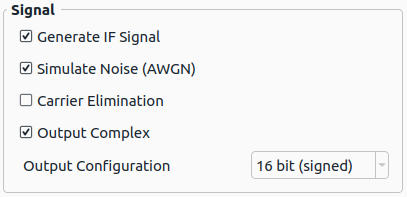

Signal Settings Core Mode

Parameter	Description
Generate IF Signal	If enabled, an intermediate frequency signal will be generated (see Signal File).
Simulate Noise (AWGN)	If enabled, additive white Gaussian noise will be added to the IF signal.
Carrier Elimination	If enabled, the carrier of the signal will not be simulated (i.e. baseband only).
Output Complex	If enabled, the generated IF signal will be complex-valued.
Output Configuration	Selects the configuration of the IF signal output. See the table and descriptions of output configurations below.

Output Configurations:

Note

When Output Complex is enabled, then each sample is split in-phase & quadrature-phase part consecutively (x-bits long). i.e. when output-configuration is set to "8bit", then a 8 bit in-phase sample is followed by a 8 bit quadrature-phase sample.

Value	Description
1bit	1 bit
8bit	8 bit signed
16bit	16 bit signed
8bit-unsigned	8 bit unsigned
16bit-unsigned	16 bit unsigned

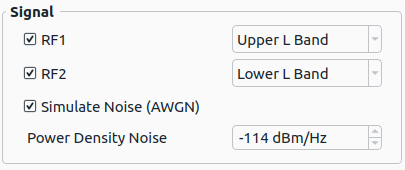

Signal Settings Pro Mode

Parameter	Description
RF1	If enabled, the GNSS signals of the assigned L-Band (Upper or Lower) will be streamed via the RF1 output.
RF2	If enabled, the GNSS signals of the assigned L-Band (Upper or Lower) will be streamed via the RF2 output.
Simulate Noise (AWGN)	If enabled, additive white Gaussian noise will be added to the RF signal.
Power Density Noise	[dBm/Hz] The used power density noise level, if AWGN is enabled.
